High Speed Camera

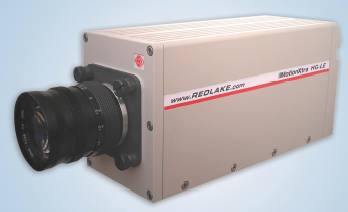

RedLake HG-LE High Speed Camera
• up to 100,000 FPS
• 1000 fps @ 1128/752 pixels
• 30 bit Color Imager and/or Monochrome
• 3rd Gen CMOS


• 1 GB Memory.
• MotionCentral Control SW
• F&C lens adaptor
• Power Supply

RedLake HG-LE High SpeedCamera
• 0.35 micron CMOS sensor exclusive to Redlake, color or monochrome
• 1500 fps at 752 x 752, up to 100,000 fps at reduced resolutions
• 1000 Base-T Ethernet for remote control and rapid image download to a PC
• 100G design for extremely harsh environments

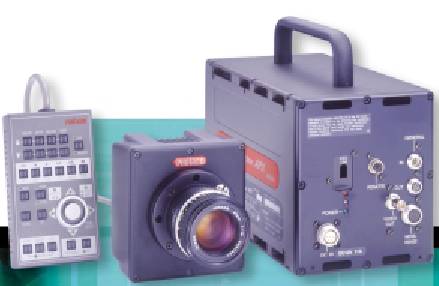

Ultima APX High Speed Video System
• Full, 1,024 by 1,024 pixel resolution, up to 2,000 frames per second (fps)
• 10-bit monochrome, 30-bit color CMOS sensor with large pixels for increased sensitivity
• Recording at frame rates up to 100,000 fps
• Global electronic shutter to 4µs
• Memory segment feature – enables 64 different recordings to be made in one session
• IRIG or GPS timing is recorded in real time on every frame – not appended later
• Lightweight tethered camera head enables easy access to hazardous or hard to reach locations
• Camera can be controlled via Photron Gigabit Optical Network, Ethernet, FireWire and Keypad
• Image memory can be expanded to 8 Gigabytes to facilitate 3 second record duration at maximum resolution and 2,000 fps or 6 seconds at 1,000 fps

Affordable PC solution for high-speed video applications
• Combination of a high-speed camera and PCI board for image display, control and processing
• 250 full frames up to 10,000 partial frames per second in both color and monochrome models
• Up to four cameras can be simultaneously operated from a single PC
• Only one PCI slot required per camera
• Live Mode allows images to be viewed on PC monitor during recording
• User interface similar to other Photron products allowing easy training on multiple camera systems
• Photron Motion Tools software provides matchless performance and choice through a selection of optional modules.
